| Features: | Fire/flame Retardant, Stable Conductivity | Product Name: | Double Head Pin |
|---|---|---|---|
| Rated Current: | 1A | Full Stroke: | 2.2mm |
| Tolerance: | +-0.01mm | Plated: | Gold Plated(10U")(can Customized) |
| Application: | BGA Test | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | 1A Double Ended POGO Pin,Double Ended POGO Pin 2.2mm,spring pogo pin For BGA Test |
||

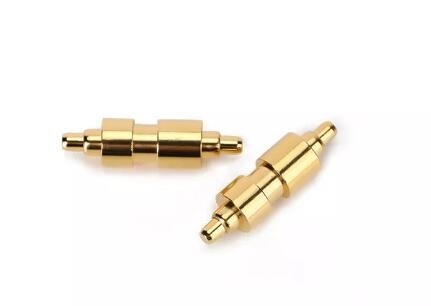

Double Ended Pin Contact Pogo Pin For BGA Test
They are commonly used in electronic devices to provide a quick and secure connection. The manufacturing process begins with a sheet of metal that is cut into small strips. Each strip is then passed through a series of rollers that gradually reduce its thickness.
Next, the strip is fed into a machine that cuts it into small pieces, each of which will eventually become a Pogo Pin. After being cut, the pieces are passed through a series of tools that give them their characteristic shape and function. Finally, the pins are plated with metal to protect them from corrosion and ensure a long lifespan. The entire process takes place in a cleanroom to prevent contamination of the finished product. they are an essential component of many electronic devices, and their manufacturing process is designed to ensure a high level of quality.
| Item | Description |
| Design/Size | According to the customer's drawing or sample |
| Material |
Aluminum:Al6061, Al6063, AL6082, AL7075, AL5052, A380 etc. Stainless Steel:SS201, SS301, SS303, SS304, (SS304 FOOD GRADE), SS316,SS316L,SUS430, SS416 etc. Steel: Mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc. Alloy steel (15Cr,20Cr,42CrMo) and other etc. Brass:HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc. Copper,Bronze,Red copper,etc. Titanium: TC4 (TiAl6v4, Gradef5) Plastic:ABS, PC, PE, POM, Delrin, Nylon, plastic, PP,PEI, Peek etc. |
| Process | CNC machining, Turning, Milling, Stamping,Lathing, Cutting, etc. |
| Leadtime | 3-7 working days for samples generally, mass production as per detail qty after samples approval. |
| Surface Treatment | Clear Anodized, Color Anodized, Chemical Film, Brushing, Passivating, Passivating, Polishing, Chroming, Sandblasting, Laser engraving, Zinc plating, Oxide black, Nickel plating, Chrome plating, Carburized, Heat treatment, Carburized,Painting |
| Test Equipment | 2D Measurement instrument,Projector,Altimeter,Micrometer,Thread Gages,Hardness, Tester, Calipers,Pin Gauge,Salt Spray Test Machine etc. |
| QC system | 100% Inspection Before Shipment |
| Application | Auto parts,machinery parts,computer parts,medical parts,home appliances parts,electrical equipment parts,electrical appliances parts,electronic products parts,electronic parts,generator parts,alternator parts,dynamo parts,electric generator parts,stationery,power switches,miniature switches,architecture,commodity and A/V equipment. |
| File Format | Solidworks,pro/Engineer,CAD,PDF,JPG,DXF,IGS |
| Packing | Inner-Plastic bag,Outer -Standard Carton Box,or according to customers' requirements |
| Shipping | You can send the goods by sea, by air, International Express(DHL,FedEx,TNT,UPS)just decide by you. |
| Service | Warm and quick response service by the professional foreign trade team. |
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
