Product Details:
|
| Process: | CNC Machining | Surface Treatment: | As Requested |
|---|---|---|---|
| Current Ration: | 12A | Tolerance: | +-0.01mm |
| Function: | PCB,Power Charing, Electronic Connector | Application: | Electric Cable, PCB, Battery Cable |
| Material: | Stainless Steel/ Carbon Steel | Handle: | T Handle, B Handle, L Handle, D Ring, Cup Head |
| Highlight: | PCB Threaded POGO Pins 10m ohm,10m ohm Threaded POGO Pins PCB,10m ohm threaded detent pins 12A |
||

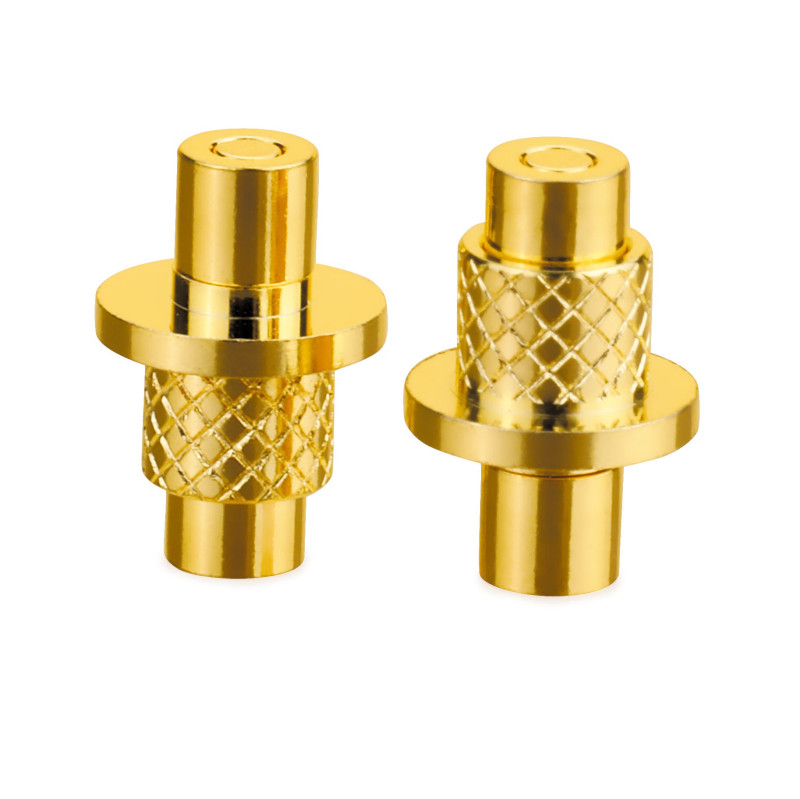

Spring Loaded Threaded Detent Pins
(a) stable contact resistance
POGO PIN connectors are mostly used in intelligent devices and other intelligent terminal devices, so stable current signal and
resistance are required to stabilize the performance of the device.
(b) Working frequency and working hours
POGO PIN connector needs to be repeatedly plugged and unplugged at work, which requires very strict frequency requirements for its work. The service life of POGO PIN can reach about 50000 times.
(c) Small size, high density and light weight
|
Main Material
|
Brass, Copper, Carbon steel, Stainless steel, Steel alloy Aluminum alloy .etc
|
|
Surface Treatment
|
Zinc plating, Nickel plating, chromate plating, anodize as per the customer's requirement |
|
Precise Tolerances we can do
|
1. Shaft diameter below 6mm and maximum pore size tolerance up to 0.003mm
2. Shaft diameter larger than 6mm and pore size tolerance is 0.005mm
3. Linearity below 100mm distance etc, tolerance is up to 0.005mm 4.100mm or more distance linear tolerance is up to 0.01mm 5. A form tolerance is up to 0.003 - 0.005mm 6. Position tolerance is up to 0.01mm. |
|
Production Equipment
|
1. CNC Machining Center
2. CNC Lathe 3. CNC Milling Machine 4. Precision Cutting Machine |
|
QC:
|
1. Incoming material will be checked carefully before production.
2. Strict processing quality control
3. 100% inspection before shipment. |
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
Product suits to all industrial Assemblies & Industrial Applications. We are a medium to high volume various brass Products supplier who produce precision Components, Brass Turned Parts, Shrew machine Parts & Fasteners, including Sub-Assemblies to specific drawing tolerances. Due to sound engineering and innovative flair, We can solve manufacturing requirements of the most technically demanding parts. With state of the art machineries, skilled labour, sufficient measuring instruments and Well experienced management, we always serve better quality at best prices. We are committed in our efforts to give you total satisfaction in terms of product and service.
1 Why choose us ?
With 100% sincerity,our company will provide the best service for you whatever products or after sales.We will provide the most reasonable quotation and design high quality samples according to your drawings or requirements.We provide guarantee for every customer after sale.
2 Can you customize products for us?
We are very pleased to customize for you or design for you. Please provide us your drawing or samples, and tell us your special requirements about the products. We can customize as soon as possible according to your requirements.
3 How much will the sample cost?
If stock items, we provide samples to customers free of charge, but you should bear the freight.
If customize iterms,we will charge for properly cost and refund reasonable proportion of sample fee when you have order for us!
4 What about your delivery time?
The delivery time depends on the quantity and difficulty of the customer's order.Usually, the stock goods delivery within 3 days while customized products delivery within 2 week.
5 How bout your company quality control?
We will test and inspect the products to ensure the quality of the products to obtain your satisfaction.Quality is the most important in our company, from material to delivery, all will be double checked and company get IS09001 to ensure this.
