Product Details:
|
| Application: | Kitchen, Bathroom, Home Office, Living Room, Bedroom | Type: | Other Furniture Hardware |
|---|---|---|---|
| Color: | Grey | Surface Treatment:: | QPQ |
| Gas Type: | Nitogen Gas | Gas Style: | Gas Cylinder |
| Highlight: | Hydraulic door Oil Damper,2.5mm QPQ Oil Damper,entry door soft close door damper |
||

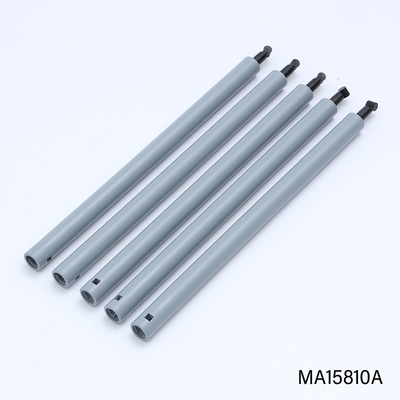

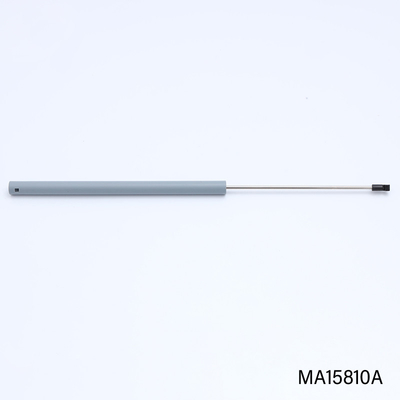

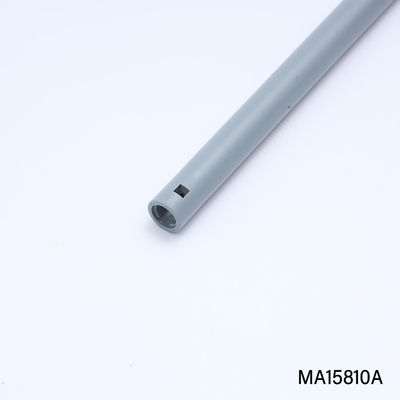

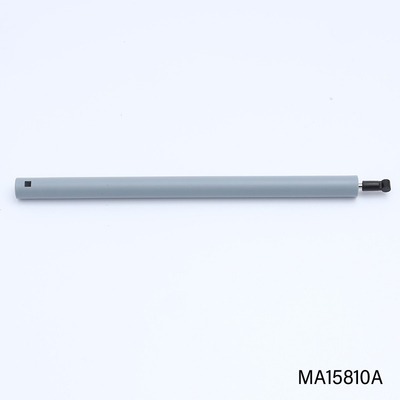

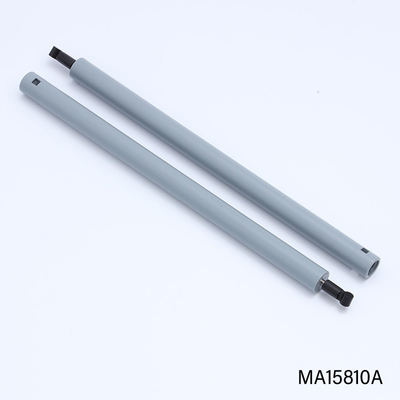

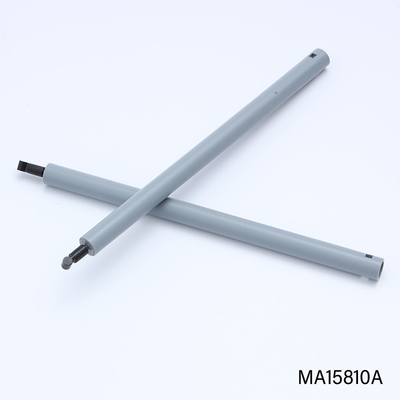

MA15810A Hydraulic Hardware Sliding Door Damper For Sliding Rail
Oil dampers can be found in many applications whereby a controlled motion of the application is required without using external air or hydraulic equipment. An oil damper consists of multiple seals, rod, piston and a cylinder filled with oil and available in stroke and extended lengths similar as to compression springs. Compression or extension speed can be influenced by using different orifices and oil viscosities.
| No. | Product model | Cylinder Length | Cylinder diameter | Rod diameter | Extend Stroke | Force(N) | Remarks |
| 1 | MA10910J | 109mm | 10mm | 2.5mm | 75mm | Customized | |
| 2 | MA10910JL | 109mm | 10mm | 2.5mm | 75mm | Customized | |
| 3 | MA10010J | 100mm | 10mm | 2.5mm | 59mm | Customized | |
| 4 | MA11710J | 117mm | 10mm | 2.5mm | 75mm | Customized | |
| 5 | MA15810J | 158mm | 10mm | 2.5mm | 110mm | Customized | |
| 6 | MA15009J | 150mm | 9mm | 2.5mm | 110mm | Customized | |
| 7 | MA08285J | 82mm | 8.5mm | 2.5mm | 52mm | Customized | |
| 8 | MA08285JL | 82mm | 8.5mm | 2.5mm | 52mm | Customized | |
| 9 | MA08210J | 82mm | 10mm | 2.5mm | 52mm | Customized | |
| 10 | MA08309N | 83mm | 9mm | 1.8mm | 55mm | Customized | |
| 11 | MA09295J | 92mm | 9.5mm | 2.3mm | 57.5mm | Customized | Self open damper |
| 12 | MAO361OJ | 36mm | 10mm | 2.0mm | 14mm | Customized | Self open damper |
| 13 | MA07810N | 78mm | 10.4mm | 1.8mm | 48mm | Customized | Used for refrigerate |
| 14 | MA07885N | 78mm | 8.5mm | 2mm | 50mm | Customized | |
| 15 | MA07010J | 70mm | 10mm | 2.5mm | 45mm | Customized | |
| 16 | MA95510N | 95.5mm | 10.4mm | 1.8mm | 50.5 | Customized | |
| 17 | MA10010N | 100mm | 10mm | 2.5mm | 69mm | Customized | |
| 18 | MA08275J | 82mm | 7.5mm | 1.5mm | 50mm | Customized | Used for refrigerate |
| 19 | MA15012J | 150mm | 12mm | 3mm | 110mm | Customized | |
| Noted: Raw material(J-POM,N-PPA),(L-Shaft as extral length) | |||||||
|
Damping medium
|
Oil
|
|
Material
|
POM
|
|
Operateion temperature
|
-20℃-60℃
|
|
Service life
|
50,000 times
|
|
Compression direction damping,active return
|
|
Our Service
1. Samples can be offered to test before placing orders.
2. Low MOQ. Small orders are accepted.
3. OEM & ODM. Customization service is offered, including logo, laser marking.
4. Outstanding R&D ability,including product development and mould development.
5. Great pre-sales and after sales service.
Q1. Can I have a sample for testing?
A: Yes, samples are in stock, we will return sample fee back to you once you make a bulk order from us.
Q2. What about the lead time?
A: Sample needs 1-3 days, mass production time needs around 15 days for order quantity more than 10000 pieces.
Q3. What is your MOQ?
A: Small order is acceptable. 1 pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Shipping time depend on the shipping way you choose.
Q5. Can I print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Customized design is available. OEM and ODM are offered.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
