Product Details:
|
| Keywords: | Pogo Pin Spring Contact Smd | Plunger Plating: | 1 Micro -inch Minimum Au Over 50~100 Micro Inch Nickel |
|---|---|---|---|
| Current Ration: | 12A | Tolerance: | +-0.01mm |
| Material: | Becu, Brass, SUS | Finish: | Gold Plated |
| Application: | PCB, Smart Watch, Phone, Tablet, Camera,Robot,Drone,Medical Devices | ||
| Highlight: | Spring Magnetic POGO Pin,Contact Magnetic POGO Pin,pogo pin battery connector 12A |
||

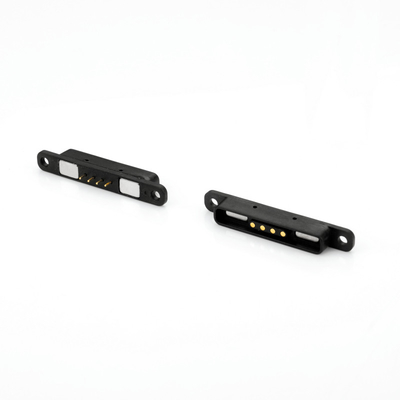

High Quality Spring Contact Magnetic Pogo Pin For PCB Battery Test
1. R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.
2. Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.
3. Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.
4. We have 6 years experience of R&D magnetic connector, nearly 50 products in many areas of successful application development experience; products related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
|
Gender
|
Male
|
|
Pitch
|
2.5mm
|
|
Pin Length
|
8.5mm to 15.0mm
|
|
Plunger & Barrel Material
|
Brass 3604
|
|
Spring
|
SUS304
|
|
Spring Force
|
70±20g or Customized
|
|
Working Stroke
|
1.4mm or Customized
|
|
Mechanical Life
|
100,000 cycles
|
|
Rated current
|
1~3A
|
|
Voltage
|
3-36V
|
|
Contact Resistance
|
30 mΩ Max
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
