Product Details:
|
| Keywords: | Pogo Pin Connector | Application: | PCB |
|---|---|---|---|
| Gender: | Female, Female | Contact Resistance: | 50 Mohm Maximum At Normal Working Height |
| Plunger Plating: | 1 Micro -inch Minimum Au Over 50~100 Micro Inch Nickel | ||
| Highlight: | PCB Connector Magnetic POGO Pin,Magnetic POGO Pin 15mm,pogo pin waterproof Female |
||
Waterproof Pogo Pin Spring Loaded Connector Magnetic Pogo Pin Connector

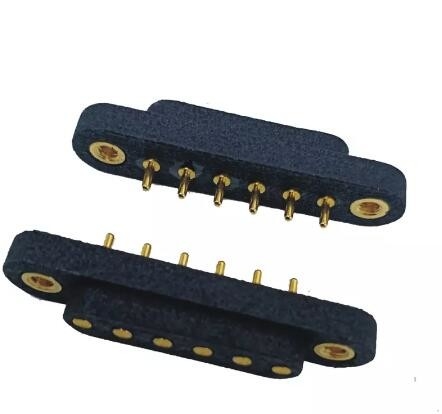

A magnetic pogo pin connector is generally assembled by a pogo pin connector and a magnet with different pin numbers such as 2 pin, 3 pin, 4 pin, 5 pin, 6 pin, and 7 pin. A magnetic pogo pin connector is mainly divided into 1 to 8 pins according to the number of interfaces, and can also be designed and customized according to customers’ needs. Therefore, in reality, the sales of magnetic pogo pin connectors require the manufacturer to make the original design first based on customers’ application and performance requirements, which requires the manufacturer to have a one-stop solution such as R & D, production, sales, and after-sales service.
Such a magnetic pogo pin connector is often used as a connector for automatic magnet adsorption charging and signal transmission functions.
|
Gender
|
Male
|
|
Pitch
|
2.5mm
|
|
Pin Length
|
8.5mm to 15.0mm
|
|
Plunger & Barrel Material
|
Brass 3604
|
|
Spring
|
SUS304
|
|
Spring Force
|
70±20g or Customized
|
|
Working Stroke
|
1.4mm or Customized
|
|
Mechanical Life
|
100,000 cycles
|
|
Rated current
|
1~3A
|
|
Voltage
|
3-36V
|
|
Contact Resistance
|
30 mΩ Max
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
Product suits to all industrial Assemblies & Industrial Applications. We are a medium to high volume various brass Products supplier who produce precision Components, Brass Turned Parts, Shrew machine Parts & Fasteners, including Sub-Assemblies to specific drawing tolerances. Due to sound engineering and innovative flair, We can solve manufacturing requirements of the most technically demanding parts. With state of the art machineries, skilled labour, sufficient measuring instruments and Well experienced management, we always serve better quality at best prices. We are committed in our efforts to give you total satisfaction in terms of product and service.
