Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Keywords: | Pogo Pin Spring Contact Smd |
|---|---|---|---|
| Length: | 4mm-10mm | Rated Current&voltage: | 5A/12V(can Customized) |
| Tolerance: | +-0.01mm | Surface Roughness: | Ra0.8 |
| Application: | PCB, Power, Charging Equipment | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | high Precision double sided pogo pins,4mm double sided pogo pins,brass contact pins Ra0.8 |
||

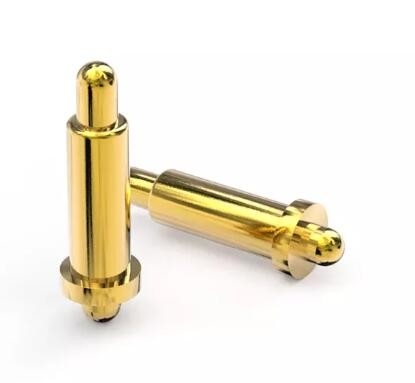

Precision Gold Plated Pogo Pin Charging Connector OEM Brass Spring Loaded Double Head Pogo Pin
Both ends of the double ended pogo pin can be compressed at the same time. The spring force calculation is different from that of the single-headed spring pogo pin. When one end is compressed by 1mm, the other end will also be compressed by 1mm at the same time, that is, the spring force of the total compression stroke is calculated by 2mm.
When assembling the double ended pogo pin, the plunger on one side is fastened by the barrel, while the other end is fastened by riveting and closing. The barre of a pogo pin usually has two types, including a through hole and a blind hole, the latter can play a good role in waterproofing. Based on the customer’s requirements, we designed the best one after going through all kinds of qualification tests and acceptance checks.
| Item | Description |
| Design/Size | According to the customer's drawing or sample |
| Material |
Aluminum:Al6061, Al6063, AL6082, AL7075, AL5052, A380 etc. Stainless Steel:SS201, SS301, SS303, SS304, (SS304 FOOD GRADE), SS316,SS316L,SUS430, SS416 etc. Steel: Mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc. Alloy steel (15Cr,20Cr,42CrMo) and other etc. Brass:HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc. Copper,Bronze,Red copper,etc. Titanium: TC4 (TiAl6v4, Gradef5) Plastic:ABS, PC, PE, POM, Delrin, Nylon, plastic, PP,PEI, Peek etc. |
| Process | CNC machining, Turning, Milling, Stamping,Lathing, Cutting, etc. |
| Leadtime | 3-7 working days for samples generally, mass production as per detail qty after samples approval. |
| Surface Treatment | Clear Anodized, Color Anodized, Chemical Film, Brushing, Passivating, Passivating, Polishing, Chroming, Sandblasting, Laser engraving, Zinc plating, Oxide black, Nickel plating, Chrome plating, Carburized, Heat treatment, Carburized,Painting |
| Test Equipment | 2D Measurement instrument,Projector,Altimeter,Micrometer,Thread Gages,Hardness, Tester, Calipers,Pin Gauge,Salt Spray Test Machine etc. |
| QC system | 100% Inspection Before Shipment |
| Application | Auto parts,machinery parts,computer parts,medical parts,home appliances parts,electrical equipment parts,electrical appliances parts,electronic products parts,electronic parts,generator parts,alternator parts,dynamo parts,electric generator parts,stationery,power switches,miniature switches,architecture,commodity and A/V equipment. |
| File Format | Solidworks,pro/Engineer,CAD,PDF,JPG,DXF,IGS |
| Packing | Inner-Plastic bag,Outer -Standard Carton Box,or according to customers' requirements |
| Shipping | You can send the goods by sea, by air, International Express(DHL,FedEx,TNT,UPS)just decide by you. |
| Service | Warm and quick response service by the professional foreign trade team. |
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
