Product Details:
|
| Keywords: | Magnetic Pogo Pin | Spring Material: | SUS304 |
|---|---|---|---|
| Rated Current: | 1A | Pin Length: | 8.5mm To 15.0mm |
| Plunger: | Brass Au Over Ni | Application: | All Electric Area |
| Highlight: | 2.54mm POGO Pin Connector,POGO Pin Connector 3 Pin,2.5mm Pitch female pogo pin 1A |
||

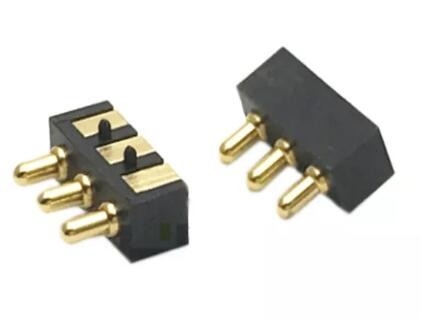

Pogo Pin Connector 3 Pin 2.54mm 2.5mm Pitch SMT Male Pogo Pin Connector 1A
(a) stable contact resistance
POGO PIN connectors are mostly used in intelligent devices and other intelligent terminal devices, so stable current signal and
resistance are required to stabilize the performance of the device.
(b) Working frequency and working hours
POGO PIN connector needs to be repeatedly plugged and unplugged at work, which requires very strict frequency requirements for its work. The service life of POGO PIN can reach about 50000 times.
(c) Small size, high density and light weight
|
Housing Material :
|
PA46,Black
|
Force:
|
150g± 20% at working weight
|
|
Barrel:
|
Brass C3604
|
Full Stroke :
|
1.60mm
|
|
Spring:
|
Music wire SWP
|
Durability:
|
100000 cycles(min)
|
|
Plating:
|
Barrel: 3u' Au over 50~80u' Ni
Plunger: 5u' Au over 50~80u' Ni
Spring: 1u' Au over 50~80u' Ni
|
Operating Temperature:
|
-40°C to +85°C
|
|
Rated Current& Voltage
|
DC12V & 1A
|
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
Product suits to all industrial Assemblies & Industrial Applications. We are a medium to high volume various brass Products supplier who produce precision Components, Brass Turned Parts, Shrew machine Parts & Fasteners, including Sub-Assemblies to specific drawing tolerances. Due to sound engineering and innovative flair, We can solve manufacturing requirements of the most technically demanding parts. With state of the art machineries, skilled labour, sufficient measuring instruments and Well experienced management, we always serve better quality at best prices. We are committed in our efforts to give you total satisfaction in terms of product and service.
