Product Details:
|
| Application: | Standard | Product Name: | Auto Connector |
|---|---|---|---|
| Pins: | 4p, 5P, 12p, 7P, 10P, 3P, 8P, 6P | Pin Length: | 8.5mm To 15.0mm |
| Surface Treatment: | Gold Plating: | ||
| Highlight: | 8.5mm Plain POGO Pin Connector,Plug In POGO Pin Connector,spring loaded pogo pin connector OEM |
||

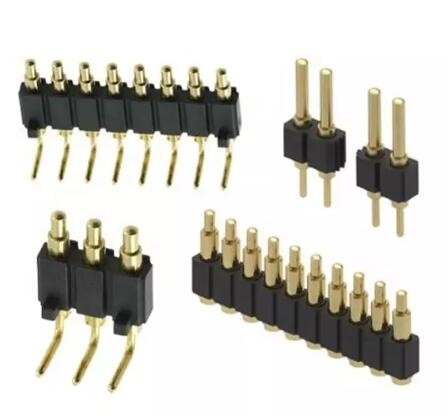

OEM Type Plain Type Plug-In Type Pogo Pin Connector
We has full complete standard connectors and special customized products service such as Pogo pin, Pogo pin connectors and wire harness cable assemblies series. We thoroughly implement the products one-stop shopping, high quality, high value, time saving.
|
Material
|
Brass (C3604)/ Plastic PVC, PC/ ABS /Magnet
|
|
Pin Salt Fog
|
48H
|
|
Pin Plated
|
Gold Plated 3U"(Can customized)
|
|
Connector Type
|
Male
|
|
Type
|
5Pin
|
|
Color
|
black,white (Can customized)
|
|
Magnetic Force
|
N52 (As requirement)
|
|
Rated Current&Voltage
|
1A~3A/12V, can be customized
|
|
Certificate
|
ISO9001/ISO14001/ROHS/REACH/MSDS/SGS/
|
|
Shipping
|
FedEx , DHL , EMS
|
|
Payment Method
|
T/T,Western Union,PayPal
|
|
Sample Lead Time
|
7-10 working day
|
|
Trade Term
|
EXW,FOB ,CIF
|
|
Production Lead Time
|
Inventory 7-10 working day ; customized 10-15 working day
|
|
Service
|
1. Have more than 10 years experience on this.
2. Daily capacity is more than 100,000 pcs , can shorten the lead time for samples and mass production. 3. Can offer freely design with 2D/3D for you |
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
Product suits to all industrial Assemblies & Industrial Applications. We are a medium to high volume various brass Products supplier who produce precision Components, Brass Turned Parts, Shrew machine Parts & Fasteners, including Sub-Assemblies to specific drawing tolerances. Due to sound engineering and innovative flair, We can solve manufacturing requirements of the most technically demanding parts. With state of the art machineries, skilled labour, sufficient measuring instruments and Well experienced management, we always serve better quality at best prices. We are committed in our efforts to give you total satisfaction in terms of product and service.
FAQ
1 Why choose us ?
With 100% sincerity,our company will provide the best service for you whatever products or after sales.We will provide the most reasonable quotation and design high quality samples according to your drawings or requirements.We provide guarantee for every customer after sale.
2 Can you customize products for us?
We are very pleased to customize for you or design for you. Please provide us your drawing or samples, and tell us your special requirements about the products. We can customize as soon as possible according to your requirements.
3 How much will the sample cost?
If stock items, we provide samples to customers free of charge, but you should bear the freight.
If customize iterms, we will charge for properly cost and refund reasonable proportion of sample fee when you have order for us!
4 What about your delivery time?
The delivery time depends on the quantity and difficulty of the customer's order.Usually, the stock goods delivery within 3 days while customized products delivered within 2 week.
5 How bout your company quality control?
We will test and inspect the products to ensure the quality of the products to obtain your satisfaction.Quality is the most important in our company, from material to delivery, all will be double checked and company get IS09001 to ensure this.
