Product Details:
|
| Product Name: | Spring Loaded Pogo Pin | Specifications: | M1.6 M3 M4 M5 M6 |
|---|---|---|---|
| Current: | 1A~3A | Voltage: | 5V~12V |
| Gold Plating: | 3U''~30U" | Gender: | Male And Female |
| Cycle Life: | 10000~1000000 Times | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | Gold plating Spring Loaded POGO Pin,Brass Spring Loaded POGO Pin,SMT pogo pin contact M1.6 |
||

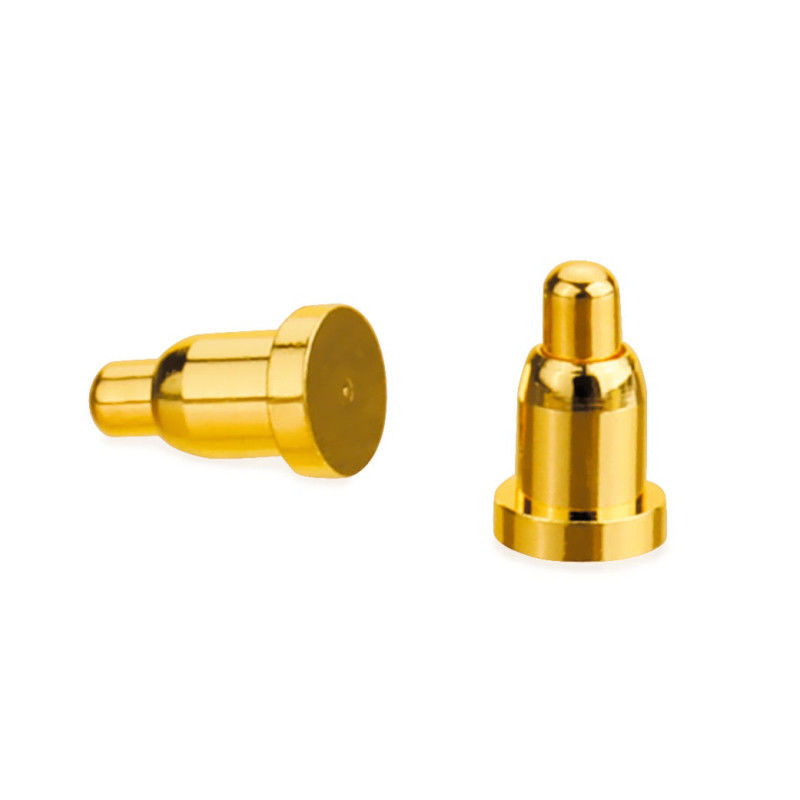

Spring loaded Pogo Pin SMT Pin Contact pin
Pogo pin is a spring loaded pin used to establish electrical connection with printed circuit board or another pin. Pogo pin is connected when it's pressed, so it could isolate signal transmission when it's in free status. While it's connected, the spring force can be secured very tight.
Multiple pogo-pin can be assembled with plastic housing to become a pogo-pin connector. The housing is customized to provide flexibility in terms of pitch, dimension, power rating, ..., etc.
TX pogo-pin contains single pogo-pin, pogo-pin connector, and crown spring connector. Please contact us to recommend the product that fits with your application.
Pogo pin applications:
1. Consumer electronics, smart wearable, digital electronics products
2. Medical products, teaching products, fitness and health equipment
3. Marine equipment, aerospace electronic and fire-fighting equipment
4. LED lights, automatic device, smart handle devices and smart home products
| Material | Brass(C3604) |
| Color | Gold |
| Size | Depends on customers' requirements |
| Type | SMT, per customers' demand |
| Plated | Gold palted from 2 to 40U", can customized |
| Cycle life | 30,000 ~100,000 times |
| Contact resistance | 50m Ohm Max. |
| Salt fog | 48H |
| Rated current&voltage | 2A~40A / 12V, can be customized |
| Applications | PCB,power ,charging equipments |
| Certificate | ISO9001/ROHS/REACH |
| Packing | 1000pcs/PE bag(or according to customer requirements) |
| Payment Term | T/T,30% Deposit,70% Balance |
| Payment method | T/T,PayPal, |
| Freight | Air,Sea,Express |
| Sample Lead Time | Inventory sample 1-3 days /customizd sample 3-7days |
| Production Lead Time | 5-15 working days, or depend on order quantity |
| Made For | America,Europe,Asia,South African |
| Trade Term | EXW,FOB,CIF |
| Service | High quality with reasonable price. |
| OEM serivce, any special size, color, designs are acceptable. | |
| Original sample can be re-made. |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Water proof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
