| Features: | Fire/flame Retardant, Stable Conductivity | Product Name: | Conductive Flat-bottomed Pogo Pin |
|---|---|---|---|
| Interface Type: | USB, DC Head | Current: | 1A~3A |
| Voltage: | 5V~12V | Gold Plating: | 3U''~30U" |
| Gender: | Male And Female | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | 3A Spring Loaded POGO Pin,Flat bottom Spring Loaded POGO Pin,Needle spring test probe pogo pin |
||

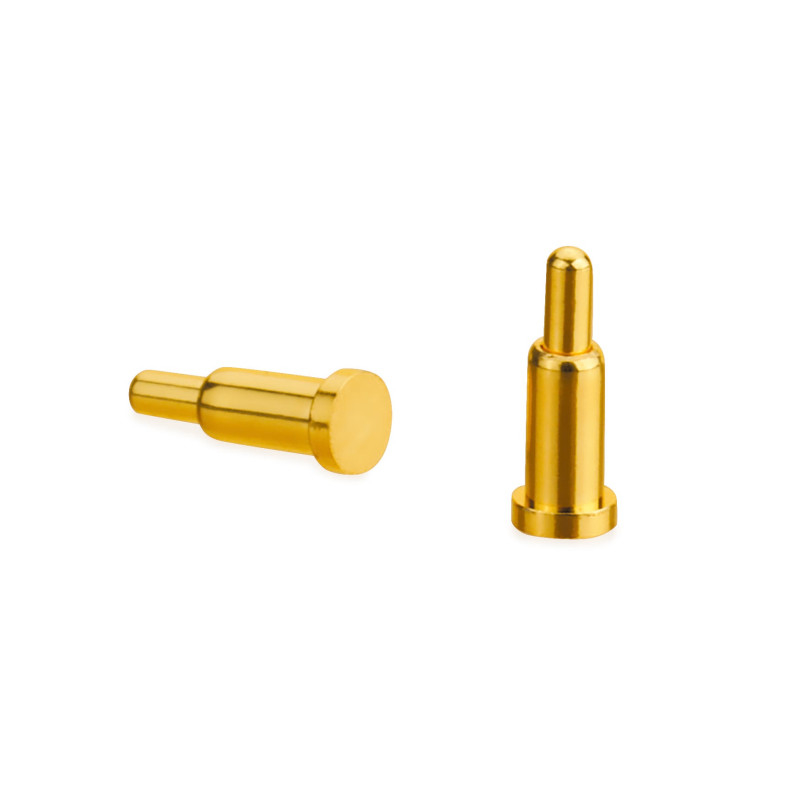

Spring Needle Customized Flat Bottom Spring Needle Probe Pogo Pin
With our engineering support, we can provide customers with magnetic simulation holding force analysis to help define the right balance of size and magnetic force. We support fast design times with the use of existing common components in our pogo pin cable assemblies, such as USB 2.0. Our low profile receptacle takes up very little space on the device and can be fully customized to fit your need.
| Pin Material | Brass(C3604) |
| Plastic material | HIGH-TEMPERATURE PLASTICS UL94V-0 |
| Pin Salt fog | 48H |
| Pin Plated | Gold plated(1-30u")(can customized) |
| Connector type | Male/Female |
| Pin | Per Row 1-80pin(depends on customer requirements) |
| Color | Black |
| Pitch | 1.27mm/2.00mm/2.54mm/3.00mm (depends on customer requirements) |
| Cycle life | 100000times |
| Contact resistance | 50m Ohm Max |
| Rated current&voltage | 1-3A/12V(can customized) |
| Application | PCB,AV equipment,medical equipment,military communication,aerospace,Phone watch, electronic cigarette |
| Certificate | SO9001/ROHS2.0/REACH/MSDS/SGS |
| Packing | 1000pcs/PE bag( according to customer requirements) |
| Payment Term | T/T,30% Deposit,70% Balance |
| Payment method | T/T,PayPal,HSBC |
| Freight | Air,Sea,Express |
| Sample Lead Time | inventory sample 2-3Working day/customized sample 5-10Working day |
| Production Lead Time | 10-15Working day |
| Made For | America,Europe,Asia,South African |
| Trade Term | EXW |
| Service | High quality with reasonable price |
| OEM service, any special size, color, designs are acceptable | |
| Original sample can be re-made |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Water proof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
