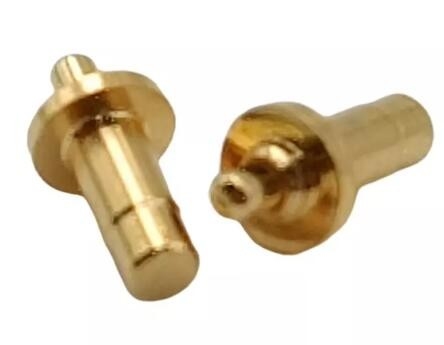

Custom Waterproof 2 3 4 Pins Electrical Pogo Pin Magnetic Connector
1) Humanized design automatic adsorption connected experience; Easy operation;
2) Uses a magnetic interface to remove the device easier.
3) Operate in a long life cycle. It supports 100,000-200,000 reattachment life times;
4) You can achieve excellent waterproof design, the host female can achieve dust-proof and waterproof (IPX8)
5) Save space, the female with PCB adapter can reach Pogo style and SMT DIP bonding jumper connection;
6) Support a high current (5A-10A), faster recharge, with less operating time;
7) Excellent corrosion rating (48H-120H) meet the harsh environments；
8) Shape customized to meet with product shape matching, improve product selling point;
9) Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish the direction( It is user-oriented and user- friendly)
10) Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);
11) Development time is short, low-cost mold for customization;
12) Provide a reliable high RF signal transmission. Our connector is USB 2.0
|
Gender
|
Male
|
|
Pitch
|
2.5mm
|
|
Pin Length
|
8.5mm to 15.0mm
|
|
Plunger & Barrel Material
|
Brass 3604
|
|
Spring
|
SUS304
|
|
Spring Force
|
70±20g or Customized
|
|
Working Stroke
|
1.4mm or Customized
|
|
Mechanical Life
|
100,000 cycles
|
|
Rated current
|
1~3A
|
|
Voltage
|
3-36V
|
|
Contact Resistance
|
30 mΩ Max
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
