Product Details:
|
| Specifications: | 1.27mm Dual Row Straight Pin Header | Mounting Type: | Pcb Connector |
|---|---|---|---|
| Pins: | 4p, 5P, 12p, 7P, 10P, 3P, 8P, 6P | Pin Length: | 8.5mm To 15.0mm |
| Interface Type: | Spring Contact | Mount: | PCB Through Holes |
| Highlight: | 1.27mm Pitch POGO Pin Connector,8 pin POGO Pin Connector,6P spring loaded header pins |
||

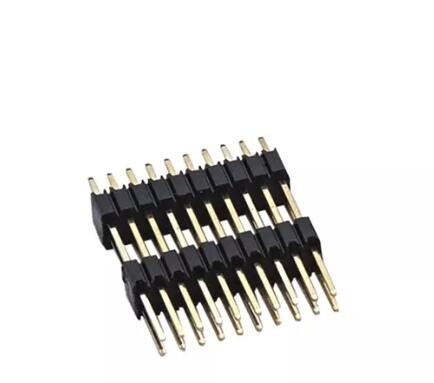

1.27mm Pitch 8pin 26 Pin 40 Pin Socket PCB Single Row Straight Male Power Connector Pin Header
- Plastic is PA46, high temperature resistance
- The spring is stainless steel SUS304.
- Continuous working current: 2.0A - Working voltage: less than 12V@25°C
- Service life: less than 10000 times
- Durability: 10,000 spring forces are kept within range.
- Positive force: working point 80-100g
- Salt spray test 5% salt solution was rust-free for 72 hours.
- Solderability test 230±5°C±1Seconds wet solder coverage is over 95%.
- Widely used in Mobile, Communications, Chargers, Sports bracelets, GPS tracker, Smart watch, Beauty instrument, Medical device, Unmanned aerial vehicle and etc.
|
Housing Material :
|
PA46,Black
|
Force:
|
150g± 20% at working weight
|
|
Barrel:
|
Brass C3604
|
Full Stroke :
|
1.60mm
|
|
Spring:
|
Music wire SWP
|
Durability:
|
100000 cycles(min)
|
|
Plating:
|
Barrel: 3u' Au over 50~80u' Ni
Plunger: 5u' Au over 50~80u' Ni
Spring: 1u' Au over 50~80u' Ni
|
Operating Temperature:
|
-40°C to +85°C
|
|
Rated Current& Voltage
|
DC12V & 1A
|
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
