Product Details:
|
| Product Name: | Spring Loaded Pin | Connector Type: | Male Pogo Pin |
|---|---|---|---|
| Application: | Bluetooth Headset Charging Pin, PCB | Finish Process: | Electroplated Gold |
| Service: | Customized OEM | Surface Treatment: | Gold Plated/nickel Plated Chrome Plated Anodized And So On |
| Tolerance: | High Precision | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | Brass plated pogo pin electrical connector,Copper plated pogo pin electrical connector,Male spring loaded electrical contact pins |
||

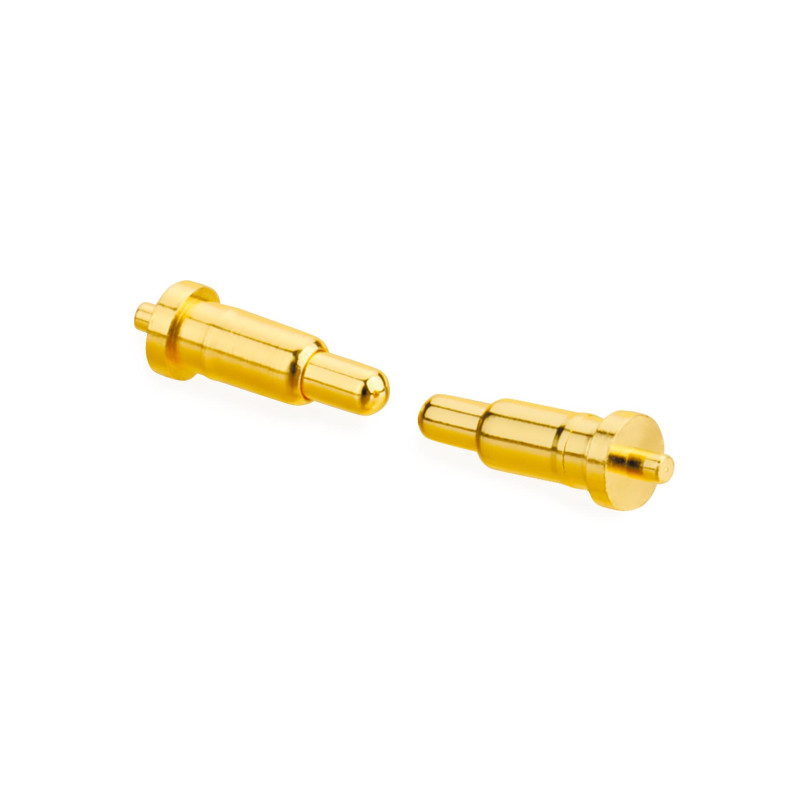

High Quality Custom Made Electrical Brass Copper Gold Plated Spring Loaded Pogo Pin
Pogo pins are spring-loaded conductive pins that are good for making temporary electrical connections. They are often used for testing electrical signals on printed circuit boards.
A Pogo pin is a device used in electronics to establish a connection between two printed circuit boards. The pogo pin usually takes the form of a slender cylinder containing two sharp, spring-loaded pins. Pressed between two electronic circuits, the sharp points at each end of the pogo pin make secure contacts with the two circuits and thereby connect them together.
Pogo Pin is spring loaded probe which is made by precision instruments with riveting workmanship. It usually consists of plunger, tube and spring.
Pogo pin is generally applied in the precision connection inside the electronics products such as mobile phones, communication devices, automotive, medical devices, aerospace devices and so on. Since pogo pin is very fine probe, it can make the finished connector light in weight, small in size and exquisite in look when it’s applied in a precision connector.
| Material | Brass(C3604) |
| Color | Gold |
| Size | Depends on customers' requirements |
| Type | SMT, per customers' demand |
| Plated | Gold palted from 2 to 40U", can customized |
| Cycle life | 30,000 ~100,000 times |
| Contact resistance | 50m Ohm Max. |
| Salt fog | 48H |
| Rated current&voltage | 2A~40A / 12V, can be customized |
| Applications | PCB,power ,charging equipments |
| Certificate | ISO9001/ROHS/REACH |
| Packing | 1000pcs/PE bag(or according to customer requirements) |
| Payment Term | T/T,30% Deposit,70% Balance |
| Payment method | T/T,PayPal, |
| Freight | Air,Sea,Express |
| Sample Lead Time | Inventory sample 1-3 days /customizd sample 3-7days |
| Production Lead Time | 5-15 working days, or depend on order quantity |
| Made For | America,Europe,Asia,South African |
| Trade Term | EXW,FOB,CIF |
| Service | High quality with reasonable price. |
| OEM serivce, any special size, color, designs are acceptable. | |
| Original sample can be re-made. |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Water proof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
