| Features: | Fire/flame Retardant, Stable Conductivity | Product Name: | Conductive Flat-bottomed Pogo Pin |
|---|---|---|---|
| Material: | Gold-plated Copper | Contact Material: | Brass Gold Plated |
| Voltage: | 5V~12V | Gold Plating: | 3U''~30U" |
| Application: | PCB | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | 2.0 x 12.1 magnetic pogo connector DIP,DIP magnetic pogo connector 2.0 x 12.1,2.0 x 12.1 Gold Plated spring loaded test probes |
||

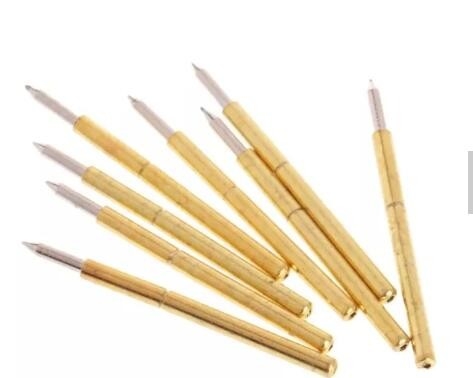

2.0*12.1 Pogo Pin Connector Gold Plated DIP Spring Loaded Contact Magnet Pogo Pin
Pogo-pin contacts consist of three primary parts: pins, tubes, and springs. The spring-loaded design provides constant lateral pressure against the inside of the tube, which results in steadier connections with better contact resistance than standard connectors.
Pogo-pin connectors feature a floating contact design that allows them to rotate and slide freely within the housing to provide the range of movement required. They also eliminate the need for soldering, which significantly decreases assembly time and cost, and have easily detachable spring pins to help maximize design flexibility. In addition, they are often electroplated with gold over nickel to achieve the high electrical conductivity, increased durability, and corrosion resisistant performance required for use in critical clinical equipment.
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
