Product Details:
|
| Keywords: | DIP Spring Loaded Pogo Pin | Spring Material: | SUS Surface Treatment |
|---|---|---|---|
| Contact Resistance: | 50m Ohms Max | Function: | Female / Male, Male Female Power Connector |
| Rated Voltage: | 12V | Life Test: | 10,000 Cycles |
| Feature: | Corrosion Resistance, Stability, Durability | ||
| Highlight: | DIP T coaxial pogo pin,coaxial pogo pin Gold Plated,micro pogo pins 1A |
||

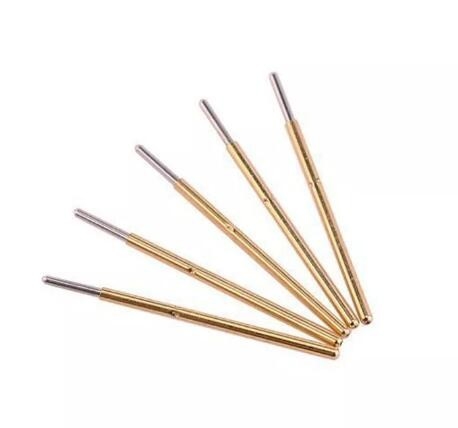

1A DIP T Spring Loaded Pogo Pinhe High Quality Brass Gold Plated
|
Equipments:
|
CNC turning, Auto-Lathes, CNC Machining Center, Stamping Machines, CNC spring machining, cnc cuting machine, welding machine, Hydraulic press, stone polishing machine, auto-milling machine, Driling Machines, Heading Machines, Slotting Machines,Tapping Machines, Chamfering Machines, Grinder Machines,Polishing Machine and so on
|
|
Testing Equipments:
|
3D measuring machine, Height Gage, Coordinate Measuring Machine, Hardness Tester, Video Measuring Machine, Roughness Tester, Torsion Tester, Salt Spray Tester,Slide caliper, Micrometer.
|
|
Material:
|
Titanium Alloy, Brass, Bronze, Copper, Aluminum, Mild Steel, Stainless Steel, A366, Alloy, Carbon steel, ABS, PC, PEEK, PPS, PPS GF40, PPS GF30, POM, PET and so on.
|
|
Surface Treatment:
|
Zinc Plating, Nickel Plating,Chrome Plating, Passivation, Hardening, Anodizing, Black Oxide Coating,Degreasing, Brushing, Electronic Polishing, Powder Coating, Gold plating, Stone Polishing, PVD Coating
|
|
Certification:
|
GB / T19001-2016 / ISO9001:2015 CertificateNo.30418Q00468R0S, SG S Factory Certificate
|
|
Type
|
DIP female and male pogo pin
|
|
Material
|
Brass
|
|
Function
|
PCB,Power charing, Electronic connector,
|
|
Size
|
3.5-7.2mm
|
|
Packaging size of a product L*W*H
|
1*1*1cm
|
|
Gross weight of each item
|
0.02kg
|
|
MOQ
|
10000
|
Electrical connectors, RC connectors, vedio and audio connectors, Models, Toys, UAV, 3D printers, Robots, Medical instrumentation,Andio and other Industries.
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
