Product Details:
|
| Keywords: | DIP Spring Loaded Pogo Pin | Spring Material: | SUS Surface Treatment |
|---|---|---|---|
| Contact Resistance: | 50m Ohms Max | Function: | Female / Male, Male Female Power Connector |
| Rated Voltage: | 12V | Life Test: | 10,000 Cycles |
| Feature: | Corrosion Resistance, Stability, Durability | ||
| Highlight: | 1A Probe POGO Pin,DIP Probe POGO Pin Gold Plated,spring loaded pcb test pins 1.05mm |
||

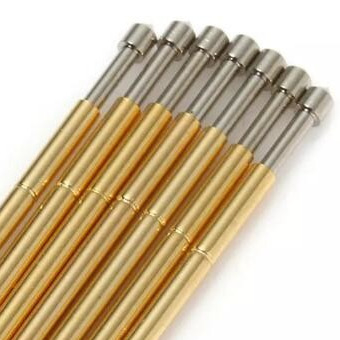

1A DIP T Spring Loaded Pogo Pinhe High Quality Brass Gold Plated
Pogo pin, A single pin consists of a plunger, spring and barrel by riveting and pressing with precision equipment. CFE has developed numerous of new structures for customers during the past decade and continues to add more parts such as a precision insulating bead, precision positioning column, precision positioning tail plug, precision inner bushing, precision outer sheath, precision steel ball, precision spring, peek sleeve, sealing ring, etc. A number of invention and utility model patents have been obtained
|
Materials
|
Plunger: Brass & Gold-plated; Barrel: Brass & Gold-plated; Spring: Stainless Steel
|
|
Diameter
|
1.05mm (Customizable)
|
|
Free Height
|
10.3mm
|
|
Working Travel
|
1.5mm
|
|
Packaging
|
100pcs per Polybag with Label
|
|
Lead Time
|
4 - 8 weeks
|
|
Payment Terms
|
T/T, Paypal in advance
|
|
Shipment Methods
|
Fedex/ DHL/ UPS/ EMS/ By Air/ By Sea
|
|
Shipment Terms
|
EXW/ FOB HK/ FOB ShenZhen
|
|
Country of Origin
|
China
|
|
Certification Request
|
C of C, Form A, Form E, RoHs Compliance, REACH
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
