Product Details:
|
| Keywords: | DIP Spring Loaded Pogo Pin | Spring Material: | SUS304 |
|---|---|---|---|
| Description: | Customized Pogo Pin | Gender: | Male |
| Application: | PCB, Power, Charging Equipment | Life Test: | 10,000 Cycles |
| Feature: | High Quality With Reasonable Price;OEM Serivce, Any Special Size, Color, Designs Are Acceptable. | ||
| Highlight: | 2.0MM Pitch Probe POGO Pin,SUS304 Probe POGO Pin,Dip spring loaded test leads |
||

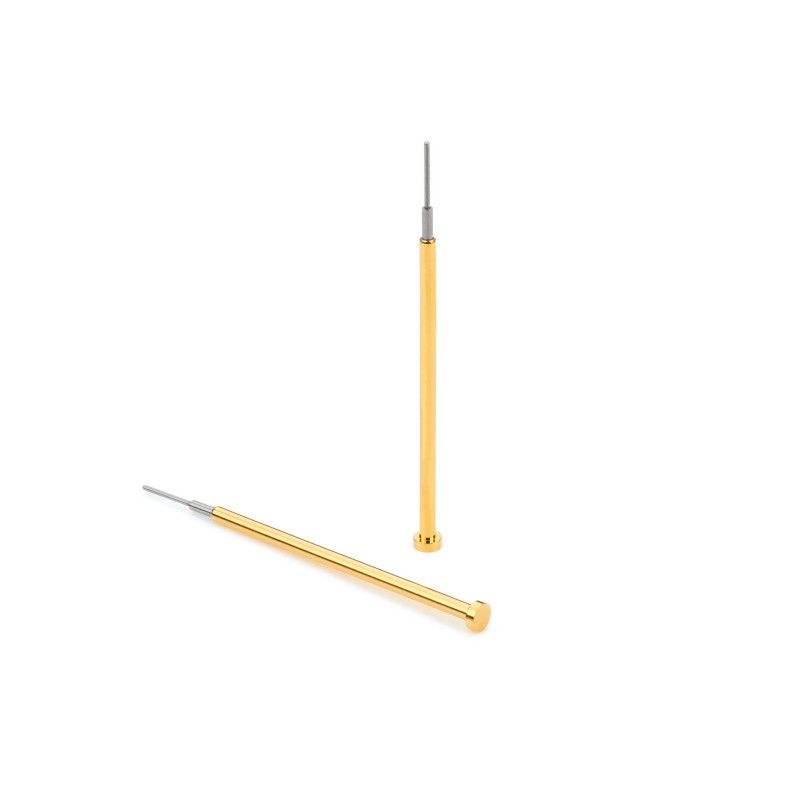

High Value 2.0MM Pitch Spring Pin Pogo Pin Dip Type Customized Length
We provide many series of spring-loaded connectors Spring loaded pin, the spring-loaded connector is a special type of contact technology. This reliable technology has been used by many world-class customers and applied to many kinds of electronic products, such as cell phones, GPS, notebooks PC, hearing aids, smart watches.
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside , or per our customers needs
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high-class precision, 0.01mm precision
3. High recycling, Large Current , Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM, Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer Electronics | Mainly used for signal transmission or grounding antenna, etc. | Mainly used high-frequency, anti-instantaneous, the situation which high-reliability is required, such as base stations, military industries, vehicles. |
| Remarks | The beads increase the internal contacts, the contact is more stable, and the more needle space is required | The most commonly used structure on the market | The space is smaller, but the contact is not stable, the current is easy to run through the spring, and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us a drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photos for your check and you then pay the balance
* We deliver the products to courier company
| Stainless Steel | SS201,SS301, SS303, SS304, SS316, SS416 etc. |
| Steel | mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc. |
| Brass | HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc. |
| Copper | C11000,C12000,C12000 C36000 etc. |
| Aluminum | AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc. |
| Iron | A36, 45#, 1213, 12L14, 1215 etc. |
| Plastic | ABS, PC, PE, POM, Delrin, Nylon, Teflon, PP,PEI, Peek etc. |
Description of product use effect
The Pogo pin can better transmit the high-frequency signal of the antenna. Compared with the antenna single piece, the Pogo pin has smaller distributed capacitance and distributed inductance due to the shorter current path at the same working height, which is more conducive to block matching, especially in the high-end segment.Based on the same working height, the Pogo PIN has a smaller distributed capacitance.
Characteristic
1. Jumper wire can be realized between board and board, which is no longer bound by line.
2. Small size and fine type development.
3. High durability can be inserted and removed times.
POGO pin is a spring-type probe formed by the three basic components of needle, needle tube and spring through riveting and pressing of the instrument.Also known as spring needle,spring thimble, spring probe, Pogo pin connector.Pogo Pin is generally used in mobile phones, communications, medical, aerospace and other electronic products in the precision connection.Because the Pogo Pin is a very fine probe, the volume can be made very small, so it can be used in the connection to reduce the weight of the connector, save space, beautify the product and appearance.
