Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Product Name: | High Current 15A Brass Dip Gold-plated Pogo Pin |
|---|---|---|---|
| Material: | Gold-plated Copper | Contact Material: | Brass Gold Plated |
| Rated Voltage: | 12V | Gold Plating: | 3U''~30U" |
| Application: | PCB | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | 15A Probe POGO Pin,4mm Probe POGO Pin,brass contact pins High Current |
||

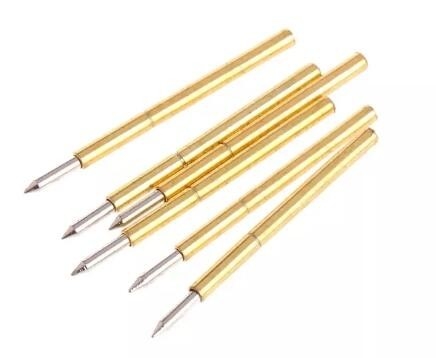

High Current 15A Brass Dip Gold-Plated Pogo Pin
Pogo pin, A single pin consists of a plunger, spring, and barrel by riveting and pressing with precision equipment. CFE has developed numerous of new structures for customers during the past decade and continues to add more parts such as a precision insulating bead, precision positioning column, precision positioning tail plug, precision inner bushing, precision outer sheath, precision steel ball, precision spring, peek sleeve, sealing ring, etc. A number of invention and utility model patents have been obtained
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
