Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Product Name: | High Current 15A Brass Dip Gold-plated Pogo Pin |
|---|---|---|---|
| Material: | Brass | Length: | 4mm-10mm |
| Rated Voltage: | 12V | Gold Plating: | 3U''~30U" |
| Application: | PCB | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | Spring Loaded pcb mount pogo pins,4mm pcb mount pogo pins,magnetic pogo connector 10mm |
||

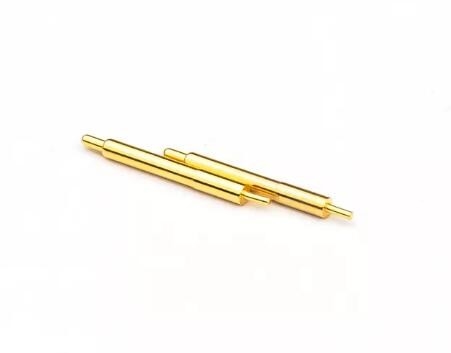

Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
Connector pin is a metal substance used in a connector to conduct electricity (signal). Connector pin material is "tungsten carbide" raw material, also known as hard alloy: hard alloy has high hardness, strength, wear resistance and corrosion resistance. It is used in the manufacture of cutting tools, cutters, cobalt tools and wear resistant parts, which also can be widely used in military industry, aerospace, mechanical processing, metallurgy, oil drilling, mining tools, electronic communication, construction and other fields.
Connector PIN can be customized based on the requirements of different equipment with different needle types. According to the requirements of ceramic powder injection molding mold, we can customize the processing pins. Due to the precise machine pin requirements, it usually in accordance with the requirements of the drawings.
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
