Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Keywords: | Pogo Pin Spring Contact Smd |
|---|---|---|---|
| Material: | Brass;gold Plating | Gender: | Female / Male, Male Female Power Connector |
| Rated Voltage: | 12V | Gold Plating: | 3U''~30U" |
| Plunger Plating: | Gold Plating Over Nickel Plating | ||
| Highlight: | 3MM Probe POGO Pin,12V PCB Probe POGO Pin,smt pogo pin Gold Plated |
||

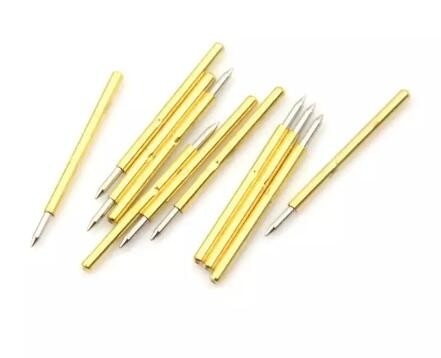

3.0MM PCB Terminal Pins Waterproof Brass Gold Plated SMT Dip Spring Loaded Pogo Pin
Application
This reliable technology has been used by many world-class customers and applied for many kinds of electronic products, such as cell phones, GPS, notebook PC, hearing aids, smart watch Battery connector, Electrical DC Power connector, Electronic component connector, Electronic Products connector, LED lighting charger pogo pin connector, Medical Component pogo pin connector , Mobile Phone pogo pin connector, Mount USB pogo pin connector, Proble PCB pogo pin connector, Quick Wire connector pogo pin connector, Smartphone pogo pin connector, SMT / SMD pogo pin connector, Telecom / Mobile pogo pin connector, Wearable Devices pogo pin connector, Wearable digital device pogo pin connector, Wire Adaptors pogo pin connectors, Andor TV Box pogo pin connector, Antenna Clips Battery pogo pin connector.
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
