Product Details:
|
| Keywords: | Pogo Pin Spring Contact Smd | Material: | Brass;gold Plating |
|---|---|---|---|
| Function: | PCB, Power ,charging Equipment | Type: | Pogo Pin, M1803 |
| Gold Plating: | 3U''~30U" | Contact Resistance: | 70 Milliohm Max |
| Plunger Plating: | Gold Plating Over Nickel Plating | ||
| Highlight: | 30U" 10A Probe POGO Pin,Probe POGO Pin High Current,thru hole pogo pin M1803 |
||

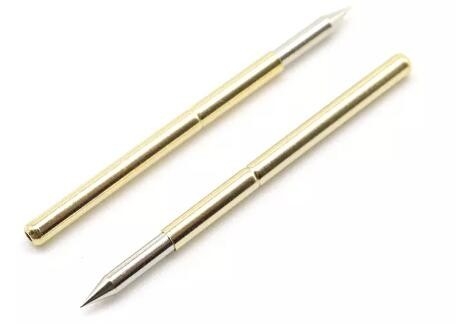

10A High Current DIP Accept Customized Service Spring Loaded Pogo Pin
| Product Name | custom male female electrical lock spring loaded pogo pin connector probe pins |
| Dimensions | Customized |
| Material | Aluminum, brass, copper, bronze and so on. |
| Surface Treatment (Finish) | Natural, nickel-plated, chrome-plated, silver-plated, gold-plated, imitation gold-plated, and so on. |
| Packing | Inner---Plastic Bag; Outer --Standard Carton Box. |
| Usage | Widely be used in electronic products, electric appliances, medical equipment and more. |
| Quality Control | |
| Equipment | Advanced CNC machines imported from Japan, Germany, and Taiwan; Advanced milling, grinding, punching and shot peening machines, and more. |
| Technical | Experienced engineers and technicians; Skilled Workers. |
| Service | Warm and quick response service provided by the professional Export Sales Team with many years of experience in handling exports to North and South America, Europe, Asia, Oceania, South Africa, and so on. |
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
