Product Details:
|
| Keywords: | DIP/through- Hole Spring Pin,DIP Pogo Pin | Material: | BRASS (3604) |
|---|---|---|---|
| Connector Type: | High Current Connectors | Function: | PCB，power ,charging Equipment |
| Rated Voltage: | 250V | Contact Resistance: | 70 Milliohm Max |
| Plunger Plating: | Gold Plating Over Nickel Plating | ||
| Highlight: | 10A High Current Probe POGO Pin,Probe POGO Pin Brass 3604,DIP spring loaded test pins |
||

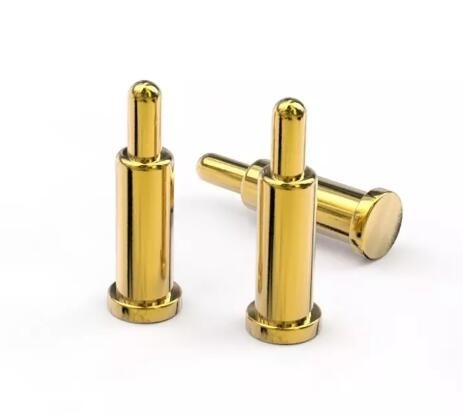

10A High Current DIP Accept Customized Service Spring Loaded Pogo Pin
The Pogo pin can better transmit the high-frequency signal of the antenna. Compared with the antenna single piece, the Pogo pin has smaller distributed capacitance and distributed inductance due to the shorter current path at the same working height, which is more conducive to block matching, especially in the high-end segment. Based on the same working height, the Pogo PIN has a smaller distributed capacitance.
Characteristic
1. Jumper wire can be realized between board and board, which is no longer bound by line.
2. Small size and fine type development.
3. High durability can be inserted and removed times.
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
