Product Details:
|
| Keywords: | DIP/through- Hole Spring Pin,DIP Pogo Pin | Spring Material: | SUS304 |
|---|---|---|---|
| Connector Type: | High Current Connectors | Function: | Female / Male, Male Female Power Connector |
| Rated Voltage: | 12V | Contact Resistance: | 70 Milliohm Max |
| Feature: | Corrosion Resistance, Stability, Durability | ||
| Highlight: | Spring Load Probe POGO Pin,Brass Probe POGO Pin 2 AMP,brass pogo pin Connector DIP |
||

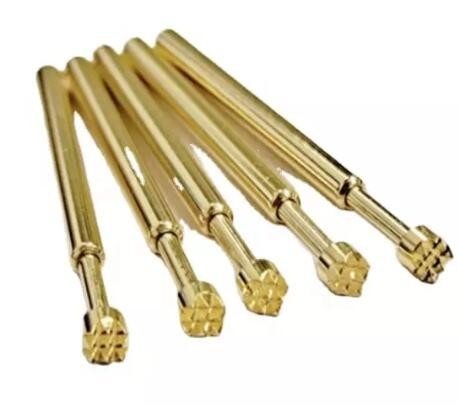

Custom Spring Load Brass Pogo Pin Connector DIP POGO Pin
|
Product name
|
Pogo pin
|
|
size
|
Customized
|
|
Material
|
Copper alloy
|
|
Housing
|
HIGH-TEMPRESIN RATED
|
|
CONTACT FORCE PER CONTACT
|
100±25gf AT1.0mm WORKING HEIGHT
|
|
RATED VOLTAGE PER CONTACT
|
12 VOLTS MAX
|
|
RATED CURRENT PER CONTACT
|
2AMP SMAX and more
|
|
CONTACT RESISTANCE
|
30 MLLIOHMS MAX
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
