Product Details:
|
| Keywords: | DIP Spring Loaded Pogo Pin | Spring Material: | SUS304 |
|---|---|---|---|
| Connector Type: | High Current Connectors | Function: | Female / Male, Male Female Power Connector |
| Rated Voltage: | 12V | Life Test: | 10,000 Cycles |
| Feature: | Corrosion Resistance, Stability, Durability | ||
| Highlight: | 4mm pogo pin test fixture,Male female pogo pin test fixture,1 Pin 2 pin pogo connector |
||

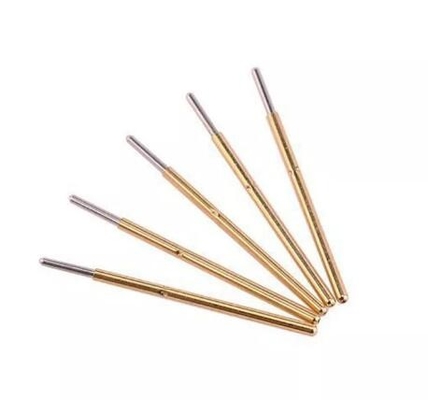

4mm Male And Female High Current DIP Spring Loaded 1Pin 2Pin Pogo Pin
POGO pin is a spring-type probe formed by the three basic components of needle, needle tube and spring through riveting and pressing of the instrument. Also known as spring needle,spring thimble, spring probe, Pogo pin connector.Pogo Pin is generally used in mobile phones, communications, medical, aerospace and other electronic products in the precision connection.Because the Pogo Pin is a very fine probe, the volume can be made very small, so it can be used in the connection to reduce the weight of the connector, save space, beautify the product and appearance.
| Product Name | custom male female electrical lock spring loaded pogo pin connector probe pins |
| Dimensions | Customized |
| Material | Aluminum, brass, copper, bronze and so on. |
| Surface Treatment (Finish) | Natural, nickel-plated, chrome-plated, silver-plated, gold-plated, imitation gold-plated, and so on. |
| Packing | Inner---Plastic Bag; Outer --Standard Carton Box. |
| Usage | Widely used in electronic products, electric appliances, medical equipment, and more. |
| Quality Control | |
| Equipment | Advanced CNC machines imported from Japan, Germany, and Taiwan; Advanced milling, grinding, punching and shot peening machines, and more. |
| Technical | Experienced engineers and technicians; Skilled Workers. |
| Service | Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to North and South America, Europe, Asia, Oceania, South Africa and so on. |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
