Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Keywords: | Pogo Pin Spring Contact Smd |
|---|---|---|---|
| Material: | Gold Plated | Pitch: | 2.5A |
| Function: | PCB, Power, Charging Equipment | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | 2.5mm pogo pin right angle,pogo pin right angle Female Data,Data Transmissioin spring loaded battery connector |
||

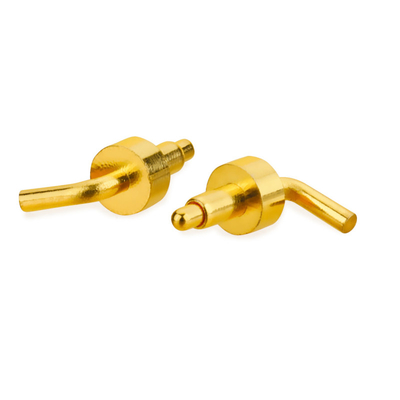

2.5mm Spring Loaded Right Angle Male Female Data Transmissioin Pogo Pin
Pogo pin connectors with multiple pins consist of a pogo pin connector- single pin and a plastic holder. CFE pogo pin connectors contain cold pressing and injection molding process. During the process of meeting special customer requirements, innovative self-developed standard specifications of pogo pin connectors are applied, such as 1.27 pitch (2-30pin), 2.0 pitch (2-72pin), 2.54 pitch (2-128pin), 3.0 pitch (2-48pin) in single row / double row / male and female connector specifications. In addition, CFE also provides a one-stop customized solution according to the requirements of our customers.
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
