Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Keywords: | Pogo Pin Spring Contact Smd |
|---|---|---|---|
| Material: | Gold Plated | Application: | Power On Link |
| Rated Voltage: | DC 12V | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | 1 Amp Right Angle POGO Pin,PA66 Right Angle POGO Pin,12V spring loaded connectors |
||

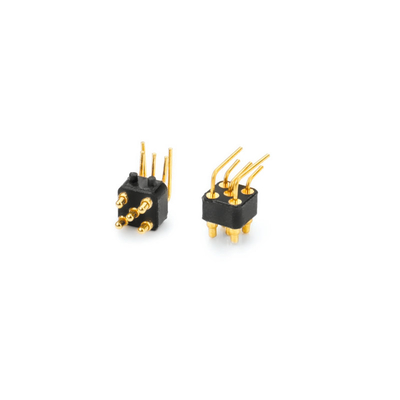

Spring Loaded Connectors 1Amp Right Angle Pogo Pin
|
Material
|
Brass(C3604)
|
|
Housing
|
PC/ABS,PA46,PA66,LCP
|
|
Color
|
Gold
|
|
Size
|
Depends on customer requirements
|
|
Type
|
Right Angle
|
|
Plated
|
Gold plated (1U") (can customized)
|
|
Cycle life
|
100000times
|
|
Rated current&voltage
|
1A/12V (can customized)
|
|
Applications
|
PCB,power ,charging equipment
|
|
Certificate
|
ISO9001/ROHS/REACH/CE
|
|
Packing
|
100pcs/PE bag(or according to customer requirements)
|
|
Payment Term
|
T/T, 30% Deposit,70% Balance
|
|
Payment method
|
T/T, PayPal
|
|
Freight
|
DHL/ Fedex /EMS
|
|
Production Lead Time
|
7-15day
|
|
Trade Term
|
EXW,FOB,CIF
|
|
Service
|
High quality with reasonable price.
OEM serivce, any special size, color, designs are acceptable.
|
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
