Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Keywords: | Pogo Pin Spring Contact Smd |
|---|---|---|---|
| Material: | Gold Plated | Application: | Power On Link |
| Color: | Gold | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | ROHS Spring Loaded pogo pin pcb,pogo pin pcb Right Angled,probe pogo pin Gold Plated OEM |
||

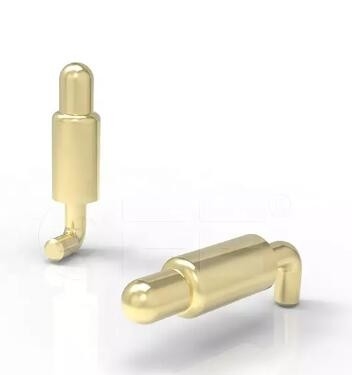

Spring Loaded Pogo Pin Single Pin Right Angled Type For PCB
| Specification: | Material: Brass C3604, spring: stainless steel The model and specification of the product, the thickness of the gold plating, can be customized according to the customer's requirements. |
| Certification: | ROHS,REACH |
| Sample: | Free |
| MOQ: | 2000pieces |
| Delivery: | Within stocks products will be send out in 3working days,customized products are sent out around 7working days |
| Terms of trade: | FOB |
| Payment Terms: | T/T,Paypal |
| Package: | products coming in paper box,Tape & Reel (TR)Carton with packing list and shipping mark |
| Application: | Widely used in communication equipment, computer, controller, anti - theft alarm, intelligent equipment, electrical instruments, automobiles, etc. |
| Service: | OEM & ODM & respond promptly. |
| pin: | brass(C3604) | Spring: | stainless(SUS304) |
| Body: | brass(C3604) | Elastic: | 80+20gf(customizable) |
| working life: | Greater than 50,000 cycles | Gold plating thickness: | 1u”-3u”(customizable) |
| PIN number: | 2-46PIN | Plastic material:LCP,PA46,PA9T | |
| working current: Continuous current 1A, instantaneous current 3A (customizable). |
|||
| Contact impedance: <30mΩ,dynamic measurement of working stroke. |
|||
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
