Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Keywords: | Metal Terminal Pin |
|---|---|---|---|
| Structure: | Right Angle Type,bending,90 Degree | Application: | Power On Link |
| Plated: | Gold Plated | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | flame retardant High Current Pogo Pin,High Current Pogo Pin Angle Bender,coaxial pogo pin 12V |
||

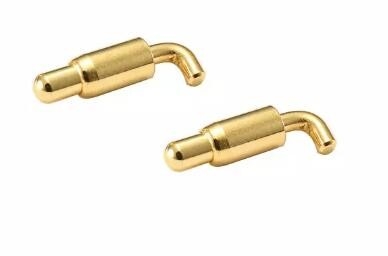

Large Current Pogo Pin For Connector Angle Bender Pogo Pin
|
Item
|
Stable performance RoHS 90 degree bend pogo pin connector
|
|
Spring Material
|
Stainless steel/SUS304
|
|
Barrel Material
|
Beryllium Copper
|
|
Sleeve Finish
|
20u'' Gold over nickel
|
|
Spring Finish
|
10u'' Gold over nickel
|
|
Rating voltage
|
12V per contact
|
|
Rating current
|
1A~3A per contact
|
|
Insulation Resistance
|
100mΩ Min.
|
|
|
50mΩ Max. before test and 60mΩ Max. after test at pogo pin working stroke.
|
|
Operation Temperature
|
-30°c ~ +85°c
|
|
Mechanical life
|
30000 cycles
|
|
Spring Force
|
≥30gf
|
|
Salt Spray
|
48 hours
|
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
