Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Keywords: | Metal Terminal Pin |
|---|---|---|---|
| Material: | Iron,Stainless Steel,Brass,Al,Copper,etc. | Application: | Power On Link |
| Color: | Gold | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | Gold Right Angle POGO Pin,OEM Right Angle POGO Pin,Heating Element spring loaded pin connector |
||

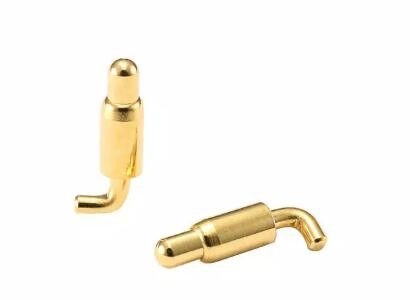

Custom Precise Brass Pogo Pin For Heating Element
A Spring Loaded Connector (Pogo pin) consists of pin, tube, and spring. It is available to make connections between Battery to PCB,Antenna to PCB, and Board to Board on a small space. A combination of Spring Loaded Connector (Pogo pin) with plastic housing allows for production of custom products that can fit various shapes and sizes. Production of the custom products are available in short periods and at low costs, because they do not require large-scale facilities. Minimum quantities will apply.
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
