Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Keywords: | Metal Terminal Pin |
|---|---|---|---|
| Structure: | Right Angle Type,bending,90 Degree | Certificate: | SGS/ISO9001/RoHS |
| Rated Current: | 1A~20A | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | metal terminal Right Angle POGO Pin,Right Angle POGO Pin 20A,through hole pogo pin header SGS |
||

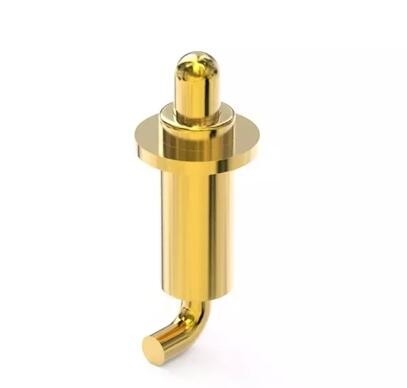

Spring Loaded Right Angle Through Holes Gold Plated Pogo Pin
|
Specification
|
||||
|
Product Name
|
pogo pin
|
Supply Ability
|
Above 20000 pieces/day
|
|
|
Material for choose
|
Brass: C3604 C5441B C3602 C38000 C14500 C2680
|
|||
|
Copper/phosphor bronze. C5441 C54400
|
Certification
|
IS09001:2015/R0HS/ENVIRONMENT PROTECTION
|
||
|
Berylium copper: C17200 C17300;Other material
|
||||
|
|
Clear Anodized,Color Anodized,Chemical Film ,Brushing ,Passivating,Polishing Chroming,Sandblasting,Laser engraving,
Zinc,plating,Oxide black,Nickel plating, Chrome plating, Carburized, Heat treatment, Carburized, Painting |
|
3~7 working days for samples generally, mass production as per detail qty after samples approval.
|
|
|
QC system
|
100% Inspection Before Shipment
|
Services
|
OEM provide
|
|
|
After-Sales Service
|
We will follow up every customer and solve all your problems satisfed
|
|||
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
