Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Keywords: | Metal Terminal Pin |
|---|---|---|---|
| Surface Treatment: | Gold Plating | Spring Loaded: | Yes |
| Rated Current: | 1A~20A | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | Right Angle low profile pogo pins,20A low profile pogo pins,miniature pogo pins ss304 |
||

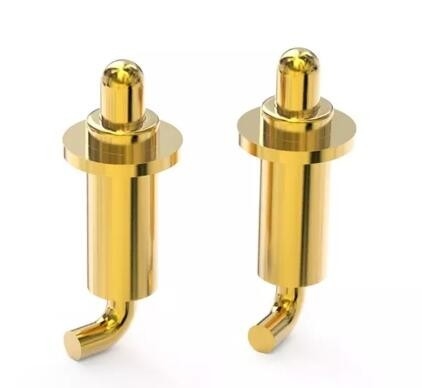

Right Angle Connector Pogo Pin Bended Pin Spring Loaded Pogo Pin
Pogo Pin is a spring-type probe formed by Plunger, Tube and Spring assembly by precision instrument riveter which is called Spring pin, Spring thimble, Spring probe, Spring Loaded, Pogo Pin connector.The bottom of a Plunger on a Pogo Pin is usually a sloping structure which is designed to ensure that the plunger keeps the Plunger in contact with the inside wall of the tube while it is working and allowing the current to flow mainly through the gold-plated plunger and tube to ensure the stability and low impedance of the Pogo Pin.
The POGO PIN has high life, low resistance, high current, small space and flexible design
The products are widely used in aerospace and military industry, industrial equipment, smart bracelets, smart phones, Tablet computers, digital cameras 3C, medical equipment and electrical equipment and Mobile phones
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
