Product Details:
|
| Keywords: | Metal Terminal Pin | Barrel: | Brass,Beryllium Copper,Phosphor Bronze |
|---|---|---|---|
| Structure: | Bending,right Angle,90 Degree | Application Range: | Communication And Conductive |
| Craftsmanship: | Cold Prossing | Plunger Plating: | Gold Plating Over Nickel Plating |
| Highlight: | 12V electrical pogo pins,Terminal electrical pogo pins,Bending high voltage pogo pins |
||

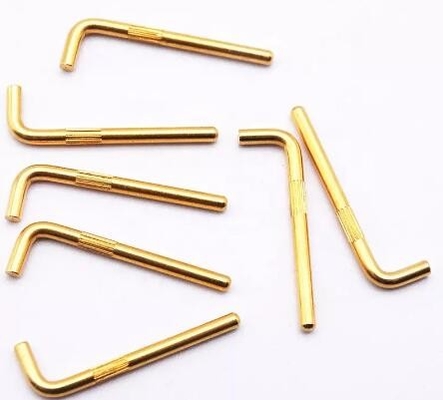

Spring Load Terminal Pogo Pin Bending Pogo Connector Pin
| Pin Material | Brass(C3604) |
| Pin Salt fog | 72H |
| Pin Plated | Gold palted(10U")(can customized) |
| Connector type | Male |
| Pin | 16pin(depends on customer requirements) |
| Color | Black |
| Pitch | 1.27mm/2.54mm/3.0mm (depends on customer requirements) |
| Cycle life | 100000times |
| Contact resistance | 50m Ohm Max. |
| Rated current&voltage | 3A/12V(can customized) |
| Applications | PCB,AV equipment,medical equipment,military communication,aerospace |
| Certificate | ISO9001/ROHS/REACH/MSDS/SGS |
| Packing | 100pcs/PE bag(or according to customer requirements) |
| Payment Term | T/T,30% Deposit,70% Balance |
| Payment method | T/T,PayPal,HSBC |
| Freight | Air,Sea,Express |
| Sample Lead Time | inventory simple 2-3day/customizd simple 3-5day |
| Production Lead Time | 10-15day |
| Made For | America,Europe,Asia,South African |
| Trade Term | EXW,FOB,CIF |
| Service | High quality with reasonable price. OEM serivce, any special size, color, designs are acceptable. Original sample can be re-made. |
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
