Product Details:
|
| Keywords: | Spring Loaded Pogo Pin Connector | Plating: | Golden Palting |
|---|---|---|---|
| Contact Material: | Brass Gold Plated | Application Range: | Communication And Conductive |
| Craftsmanship: | Cold Prossing | Certificate: | UL CE RoHS REACH ISO TS16949 |
| Highlight: | 3V Right Angle POGO Pin Brass Plated,3V Brass Plated Right Angle POGO Pin,Brass Plated Right Angle POGO Pin 3V |
||

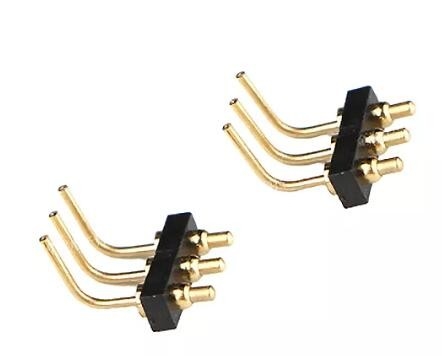

Right Angle Male Header SMT Type Pogo Pin
|
Product description
|
2.5mm Pogo Pin Female Spring connectors 1x06P Dip Type Pogo pin
|
|
Spring force
|
70±20g or customization
|
|
Durability
|
10,000 cycles(minimum)
|
|
Rated current
|
1~3V
|
|
voltage
|
3-36V
|
|
RoHS compliant product
|
|
|
To ensure the best usage, pledse operate it based on the working height Based on the engineering drawings, shall not exceed the maximum allowed compression
|
|
|
fo avoid areing issue, The adaptor start to power apply after connector mated fully
|
|
|
Samples
|
1 week
|
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer Electronics | Mainly used for signal transmission or grounding antenna, etc. | Mainly used high-frequency,anti-instantaneous, the situation in which high reliability is required, such as base stations, military industries, and vehicles. |
| Remarks | The beads increase the internal contacts, the contact is more stable, and the more needle space is required | The most commonly used structure on the market | The space is smaller, but the contact is not stable, the current is easy to run through the spring, and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us a drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
Male Header surface mount pogo pins - 3
